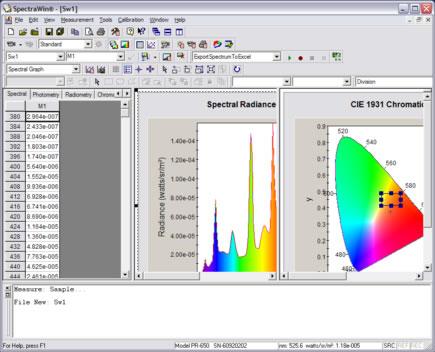

SpectraWin™ 2 is the latest member of the SpectraWin™ software family. Like its predecessor, SpectraWin™ 2 is a Windows (98, ME, 2000, XP) based control program designed to provide a powerful and easy-to-use interface to control and manipulate data from your PR-6xx (PR-640, PR-645 or PR-650 ) and PR-7xx (PR-704*, PR-714*, PR-705 or PR-715) SpectraScan spectroradiometer. In addition to the standard features of measurement and display of spectral power distribution, luminance and colourimetry of the source, SpectraWin™ 2 has additional features for viewing, analysing and calculating measured data.

 * PR-704 and PR-714 - Windows 98 and ME only.

Multiple Choice

SpectraWin™ 2 can be purchased in three versions: SpectraWin™ Lite, SpectraWin™ Pro and with the RGB DisplayCal option. SpectraWin™ Lite provides the basic suite of measurement capabilities. SpectraWin™ Pro includes a powerful Macro Scripting tool to help you automate your measurement tasks. The RGB DisplayCal package turns your SpectraScan into a Windows based display calibration tool enabling you to interactively set the white point of the display from a "learned" stimulus (golden display) or by entering target values.

What's New

  • Completely redesigned GUI

  • Spectral and CIE "Crosshair" Digitizer - Tracks and reports wavelength and spectral (or chromaticity) values.
  • PR-650 calibration capability (optional)
  • Enhanced display graphics (zoom, refresh, scale, resize, multiple display windows for a single measurement.)
  • Customizable tabular data display.
  • Enhanced math functions including interpolation, smoothing and measurement precision.
  • Multiple, user-defined GO/NO GO color regions.
  • Customize graph titles, axes titles and colors.


  • Spectral Radiance/Irradiance

  • Luminance/Illuminance
  • Correlated Color Temperature
  • CIE Chromaticity
  • L*a*b* / L*u*v*
  • DE*ab, DE*uv
  • Transmittance
  • Optical Density
  • Reflectance

System Requirements

  • To Install SpectraWin™, the following minimum hardware configuration is recommended:

  • Intel processor
  • Super VGA (800 x 600) 256-color display (65536 or higher colors for certain components)
  • Atleast 20MB free hard disk space
  • 3½-inch 1.44MB Floppy Drive
  • CD-ROM drive
  • 64MB RAM or more (256 MB preferred)
  • Available serial port to connect to Photo Research instruments

In addition to the recommended hardare, the following software is required:

    Microsoft® Windows NT Server 4.0 or later
    Microsoft® Windows NT Workstation 4.0 or later
    Microsoft® Windows 98® or later

    Microsoft Internet Explorer 4.0® or later
